This set of production line is mainly for french fries processing in SIMPLOT. It can make potato cut into strips and chips easily. But it needs people to operate. Compared with fully automatic french fries potato chips production line, it is the first choice for small process enterprise.
Potato peeling machine → potato cutting machine/french fries machine → blanching machine → dehydrator → deep fryer → deoiling machine → seasoning machine → packing machine
Introduction of different potato making machine
Potato washing & peeling machine: used to clean and peel the skin of potatoes in energy-conserving and high efficient way.
Potato cutting machine: cutting the potatoes into strips and bar shapethe thickness can be adjusted according to your preference.
French fries blanching machine: this is used for blanching french fries and making them look more attractive keeping fresh.
De-watering machine: with centrifugal for saving the time of frying and make the french fries more delicious.
French fries Frying machine: adopt water & oil mixture frying machine after the operation is finished. You just need to release the water at the same time the residue will flow outside together with the water greatly increasing the oils using recycle.
De-oiling machine: reduce the oil content of french fries and make preparation for flavoring process.
Flavoring machine: adopt spray method, seasoning the french fries evenly. and the french fries are not easy to break.

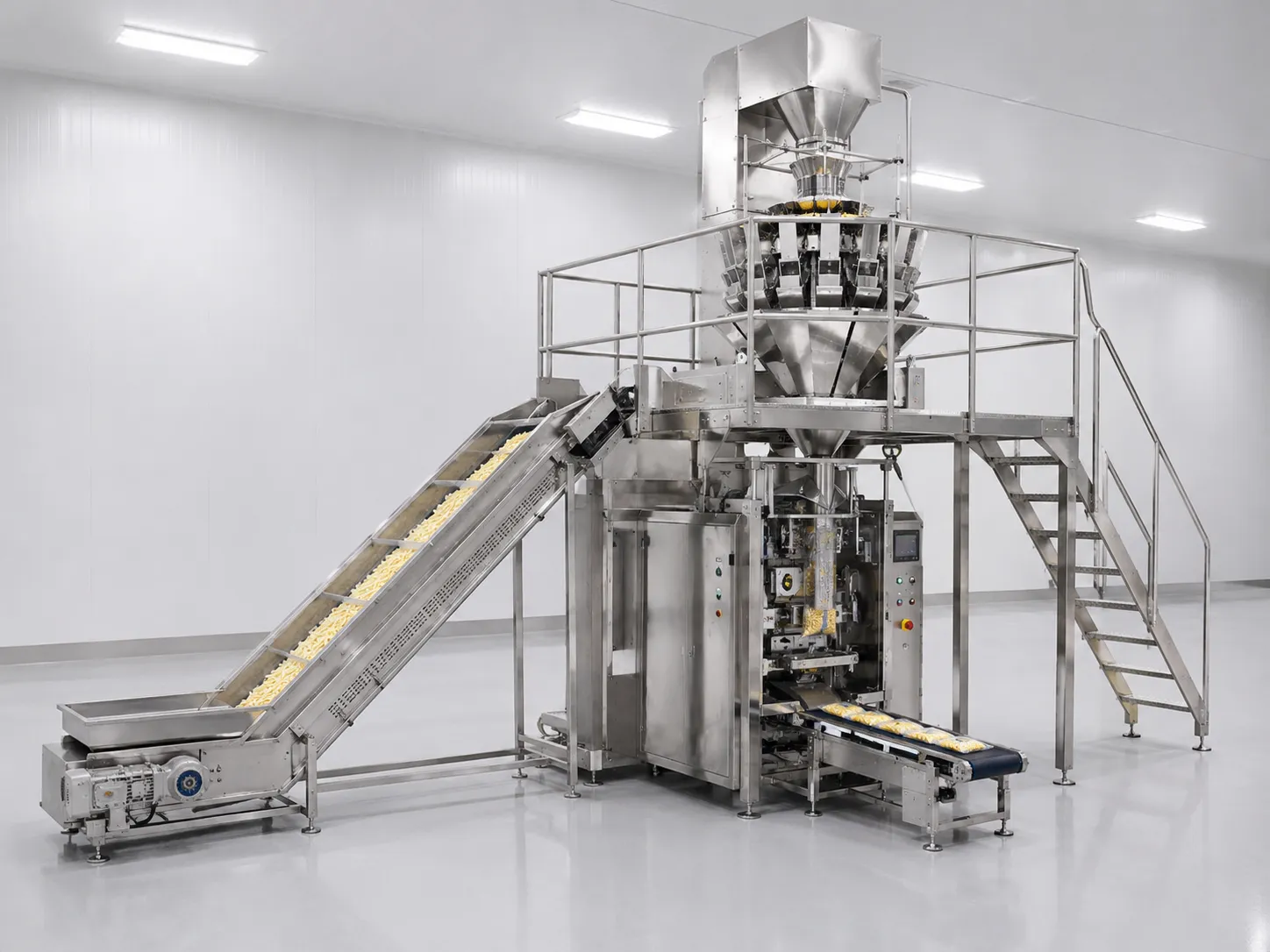

French fries packing machine: inflate the nitrogen into bags white packaging french fries. It could finish inflation, packaging and printing one time.
| Device machine | Power(kw) | Dimensions(mm) |
| Cleaning machine | 1.5 | 700*630*950 |
| Potato chip fries machine | 1.1 | 900*850*1000 |
| Mesh belt blanching machine | 24 | 1000*500*1000 |
| Dehydrator | 1.5 | 1000*600*740 |
| fryer | 36 | 1200*1000*1200 |
| deoiler | 1.5 | 1150*600*740 |
| Seasoning machine | 1.1 | 1150*800*1300 |
| Packing machine | 1.5 | 800*500*1000 |
1. People can use it in many places, such as small process enterprise, food factory, etc.
2. It is can be used for all kinds of root vegetables and fruits, potato, carrot, apple, banana etc.
Main equipment included in this processing line
1. transmission part 2. Outlet Manual control of discharge after working and it is easy to operate. 3. Moving wheels and easy to move 4. Spraying nozzle. Spray direction id adjustable
With high-speed stainless steel blades, this industrial potato chip slicer is designed for efficient cutting and is commonly used in potato chip production lines. It can process up to 500 kilograms of potatoes per hour and can quickly cut them into uniform potato chips, which significantly improves production efficiency, reduces labor costs and helps companies make profits. The cutting size ranges from 7mm to 20mm and users can easily change the cutting size by simply adjusting the blade to meet various market needs. The discharge direction of the equipment is flexible and can be parallel or curved to facilitate further processing and packaging.
Detailed Description1. Distance adjusting wheels can help you move it easily. 2. Adjustable blanching timer, it is up to you.3. It is fully automatic function in order to save labor cost. &n
Continuous fryer machine is made of stainless, temperature self-control, according to the characteristics of different fried food, free to set the temperature of the oil. Capacity: 50kg/h-800kg/h and offer customized service. Heathing methods are optional: gas, electricity and both of them.
This oil and water removing spinner is suitable fr removing surface water of material after washing. It is also suitable for removing surface oil of material after frying. It is usuitable for all kinds of leafy vegetable, vegetable chips and fries, freid food, etc.
Seasoning machine is used for snack food seasoning, feeding, mixing materials, hanging pulp and so on. It is made of stainless steel. Capacity:50kg/h-300kg/h
Granule packaging machine is suitable to use in packing and high accuracy and easy fragile material, such as: puffy food, crispy rice, jelly, candy, pistachio. Apple slices, dumpling, chocolate, pet food, small hard wares,medicine etc.
Tell us your product type, raw material and target capacity. Our engineers will recommend a suitable food processing solution.
